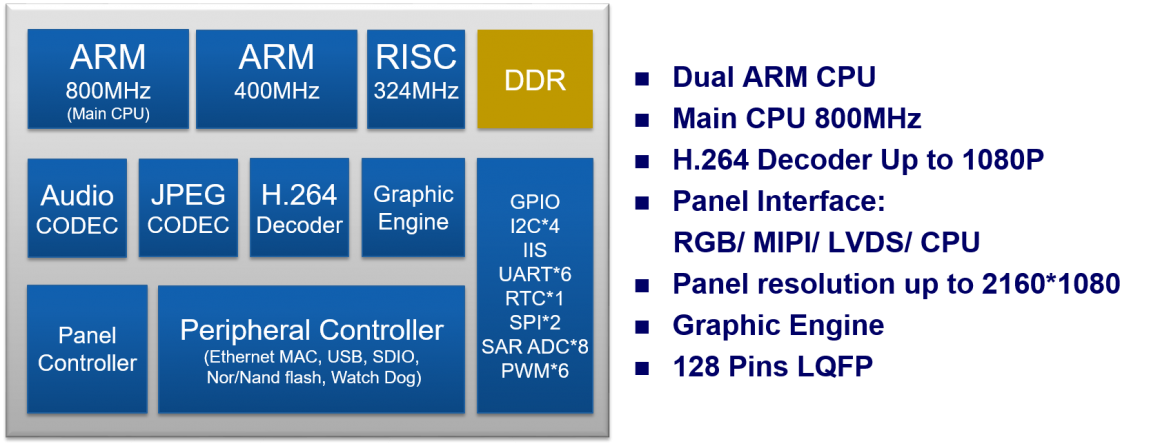

Function Block
Features
| Feature | IT9867 | IT9869 | IT9869-AT |
|---|---|---|---|
| CPU | ARM926 800MHz RISC 324MHz RISC 324MHz |
||
| Stacked Memory | 512Mb DDR2 | 1Gb DDR3 | 1Gb DDR3 |
| Operating Temperature | -40°C~85°C | -40°C~85°C | -40°C~105°C |
| Video | 720p H.264 CODEC | 1080p H.264 CODEC | 1080p H.264 CODEC |
| Photo | JPEG, PNG | ||
| Graphic | 2D / Partial 3D Function | ||
| Display Interface | MIPI, SPI, RGB, CPU, LVDS | ||
| Display Resolution | 1280*800 | 2160*1080 | 1920*1080 |
| USB | 2.0 OTG | ||
| SD/SDIO | Yes | ||
| NOR/Nand Flash | QSPI | ||
| Ethernet MAC | 10/100 Mbps | ||
| Audio CODEC | ADC, DAC | ||
| IIC | 4 | ||
| UART | 6 | ||
| SPI | 2 | ||
| ADC | 8 | ||
| CAN | 2 | ||
| RTC | 1 | ||
| Package | 128 Pins LQFP | ||
| Wireless Module (Plug in) | 4G, WiFi, Bluetooth... | ||
