EFR32MG22 Zigbee SoC

Series 2 Zigbee SoC
EFR32MG22是市场上最小,功耗最低的Zigbee SoC。 MG22专为加速Zigbee Green Power能量收集应用程序的开发而设计,具有更长的电池寿命和强大的安全功能。 目标应用包括智能家居传感器,照明控制以及楼宇和工业自动化。
EFR32MG22 Zigbee SoC
OVERVIEW
EFR32MG22 (MG22) Zigbee SoC(片上系统)解决方案是无线 Gecko 系列 2 平台的一部分。MG22 系列提供优化的 Zigbee SoC 解决方案,该解决方案融合了带 TrustZone 的高性能、低功耗 76.8 MHz ARM® Cortex®-M33 内核。MG22 SoC 将超低传输和接收功率(+6 dBm 下 8.2 mA TX,3.9 mA RX)、1.4 µA 深入睡眠模式功率和低功耗外围设备组合在一起,为使用 Zigbee 协议的应用(包括绿色电源)提供业界领先的节能解决方案。IoT 应用包括智能家居传感器、照明控制、建筑自动化以及工业自动化。

MG22 安全功能
  • 通过信任根和安全装载程序 (RTSL) 实现安全引导
  • 用于 AES128/256、SHA-1、SHA-2(高达 256 位)、ECC(高达 256 位)、ECDSA 和 ECDH 的硬件加密加速
  • 真随机数发生器 (TRNG),符合 NIST SP800-90 和 AIS-31 标准
  • ARM® TrustZone®
  • 带锁定/解锁的安全调试

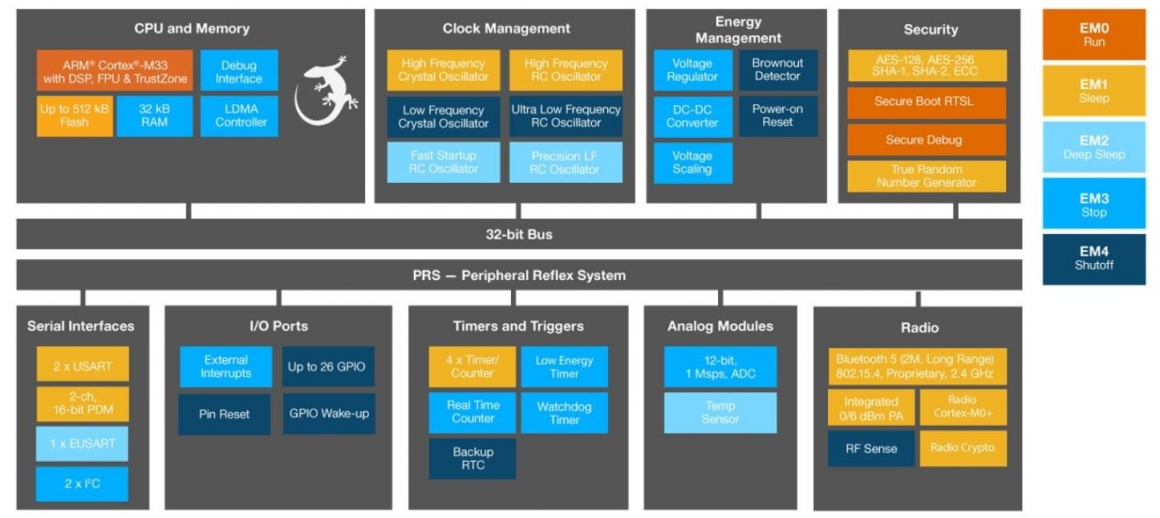

efr32mg22 block diagram

APPLICATION [智能门锁解决方案]

RELATED PRODUCT [BG22] [FG22]

MG22 SPECS
Low Power Wireless System-on-Chip
  • High Performance 32-bit 76.8 MHz ARM Cortex®-M33 with DSP instruction and floating-point unit for efficient signal processing
  • Up to 512 kB flash program memory
  • Up to 32 kB RAM data memory
  • 2.4 GHz radio operation
Wide Selection of MCU Peripherals
  • 12-bit 1 Msps SAR Analog to Digital Converter (ADC)
  • Up to 26 General Purpose I/O pins with output state retention and asynchronous interrupts
  • 8 Channel DMA Controller
  • 12 Channel Peripheral Reflex System (PRS)
  • 4 × 16-bit Timer/Counter with 3 Compare/Capture/PWM channels
  • 1 × 32-bit Timer/Counter with 3 Compare/Capture/PWM channels
  • 32-bit Real Time Counter
  • 24-bit Low Energy Timer for waveform generation
  • 1 × Watchdog Timer
  • 2 × Universal Synchronous/Asynchronous Receiver/Transmitter (UART/SPI/SmartCard (ISO 7816)/IrDA/I2S)
  • 1 × Enhanced Universal Asynchronous Receiver/Transmitter (EUART)
  • 2 × I2C interface with SMBus support
  • Digital microphone interface (PDM)
  • Precision Low-Frequency RC Oscillator to replace 32 kHz sleep crystal
  • RFSENSE with selective OOK mode
  • Die temperature sensor with +/-1.5 °C accuracy after single-point calibration
Supported Modulation Format
  • 2 (G)FSK with fully configurable shaping
  • OQPSK DSSS
  • (G)MSK
Radio Performance
  • -102.3 dBm sensitivity @ 250 kbps GFSK
  • -106.7 dBm sensitivity @125 kbps GFSK
  • -98.9 dBm sensitivity @ 1 Mbit/s GFSK
  • -96.2 dBm sensitivity @ 2 Mbit/s GFSK
  • TX power up to 6 dBm
  • 2.5 mA radio receive current
  • 3.4 mA radio transmit current @ 0 dBm output power
  • 7.5 mA radio transmit current @ 6 dBm output power
Protocol Support

  • Bluetooth Low Energy (Bluetooth 5.2)
  • Direction finding using Angle-of-Arrival (AoA) and Angle-of-Departure (AoD)
  • Zigbee PRO/Green Power
  • Proprietary
Wide Operation Range
  • 1.71 V to 3.8 V single power supply
  • -40 °C to 125 °C
Low System Energy Consumption
  • 3.6 mA RX current (1 Mbps GFSK)
  • 3.9 mA RX current (250 kbps O-QPSK DSSS)
  • 4.1 mA TX current @ 0 dBm output power
  • 8.2 mA TX current @ 6 dBm output power
  • 26 μA/MHz in Active Mode (EM0) at 38.4 MHz
  • 1.40 μA EM2 DeepSleep current (32 kB RAM retention and RTC running from LFRCO)
  • 0.17 μA EM4 current
Packages
  • QFN40 5 mm × 5 mm × 0.85 mm
  • QFN32 4 mm × 4 mm × 0.85 mm
  • TQFN32 4 mm × 4 mm × 0.30 mm

EFR32xG22 无线 Gecko 入门套件 - SLWSTK6021A

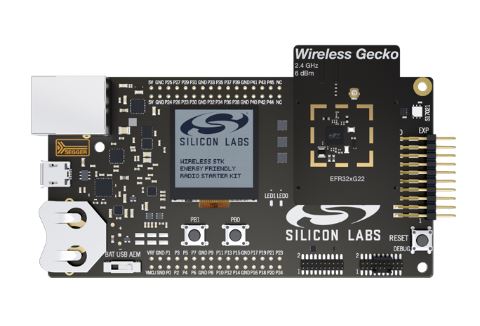

EFR32xG22 (xG22) 无线入门套件 (WSTK) 支持蓝牙、Zigbee 和专有无线协议。此 WSTK 包括两个 +6 dBm 无线电板,是 EFR32xG22 无线 SoC 的完整参考设计,带匹配网络和 PCB 天线以支持 +6 dBm 输出功率(在 2.4 GHz 频段中)。它还包含带数据包追踪接口和虚拟 COM 端口的板载 J-LINK 调试器,可对连接的无线电板和外部硬件进行应用程序开发和调试。xG22 WSTK 提供开发高容量、可扩展无线 IoT 应用所需的所有工具。
